M49

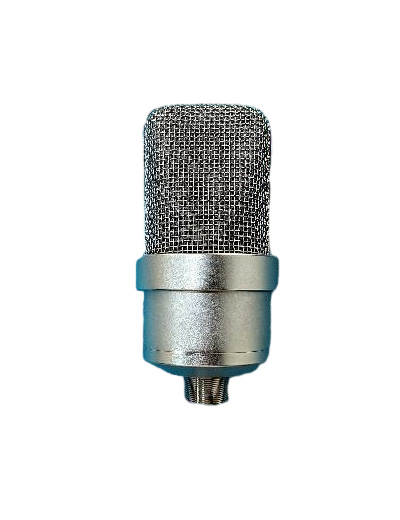

M49 Tube Microphone

We produce M49 mics with 9 polar pattern switched stayed on the power supply.

We have been used K47 type capsules and 10:1(BV11) style transformer inside.

Technical Data:

  • Acoustical Operating Principal: Pressure Gradient Transducer
  • Frequency Range: 20-20000Hz
  • Polar Pattern: 9 types Omni/Cardioid/figure 8 etc
  • Sensitivity:- 32dbu
  • Impedance: 200Ω
  • S/N Ratio: 80dB (Ref. 1Pa A-weighted)
  • Equivalent Noise Level: 14dB (A-weighted IEC 268-4)
  • Max SPL for 0.5% THD: 138dB
  • Tube Type: 5654w
  • Power Requirements: Dedicated Power Unit (Supplied)
  • Size: Ø80mm x 165mm
  • Weight: 960g
  • Metal Finish: Nickle
