H47

H47

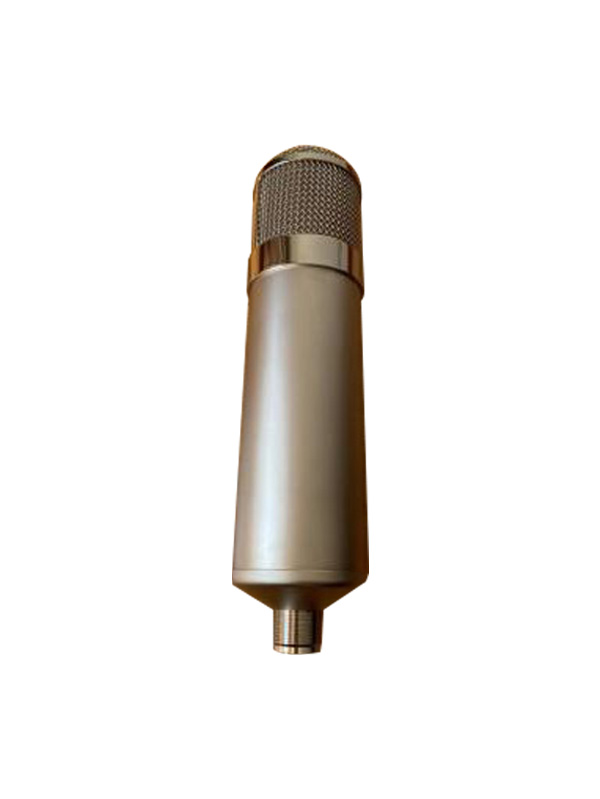

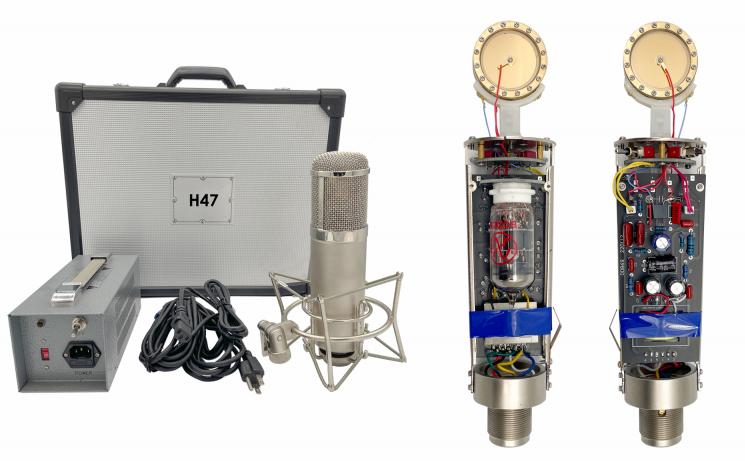

The H47 is an electronic tube microphone with a retro shape. It has 35mm dual large diaphragm capsule which provides rich sound details, 9 directions meet different scenarios. The main amplification element is a 12AX7B electronic tube, which makes the sound warm and thick. At the same time, the supporting components are all made of discrete fever components. The excellent quality ensures the stable operation of the electronic tube and extremely low bottom noise.

Specifications

  • Type: 35mm dual large diaphragm pressure gradient transducer microphone.
  • Polar Patterns: Omni, Cardioid, Figure 8 etc.
  • Frequency Range: 20Hz-20KHz
  • Dynamic Range: 120dB
  • Special Features: Switch lowcut filter (HPF), -10dB PAD, Polar Pattern Switch
  • Impedance: 100Ω
  • Max. SPL: 0.5%THD@1000Hz:130dB
  • Noise: 22dB
  • Sensitivity: -33dB
  • Connector: Microphone:7-PIN Supply:3-PIN
  • Power Requirement: Exclusive power box
