RS62

RS62

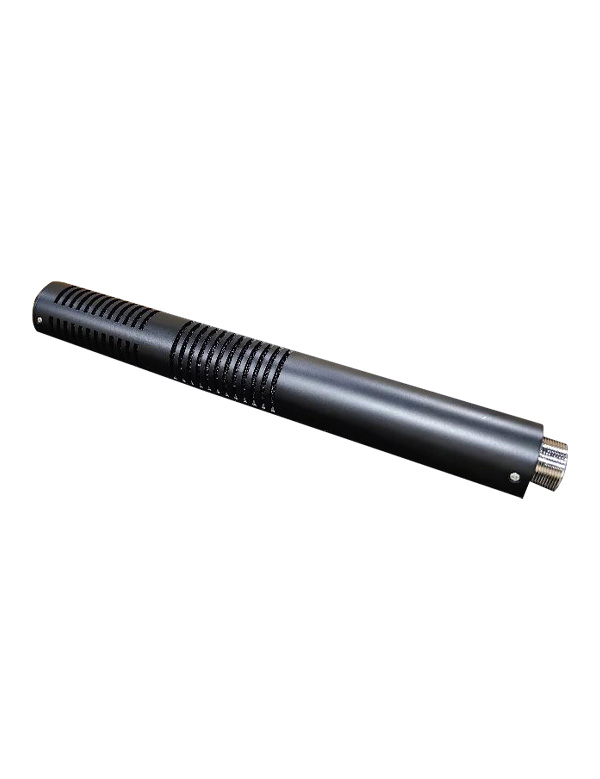

RS62 is a stereo ribbon microphone. The ribbon thickness is 2.2 microns, The ribbon transducer is comprised of two neodymium magnets and high pure iron alloy. It is made of two separated matching ribbon microphone. They are mounted in proximity on a vertical axis, placed aimed 45 degrees. When held vertically, the upper microphone is the left channel and the lower microphone is the right channel. Its extension 5 pin cable come with an adapter with two pieces 3 pin cable. It is an excellent choice for drum overheads, where its stereo imaging and realism help to create powerful, dynamic drum tracks. In a jazz setting, recording the kit flat provides extremely natural sounding cymbals, tom-toms and snares.

Ribbon Stereo microphone

  • Technical specifications
  • Frequency response: 20Hz-12kHz
  • Sensitivity: -55dB ± 2dB (0dB=1V/Pa at 1kHz)
  • Output impedance: 200 Ω
  • Maximum sound pressure level: 145dB (THD ≤ 1.0% at 1kHz)
  • Size:Ф32*270 mm
  • Weight:480g
  • Ribbon length:50 mm
  • Ribbon width:4.5 mm
  • Ribbon thickness:2.5 microns
  • Interface:5-pin XLR
