SSY400

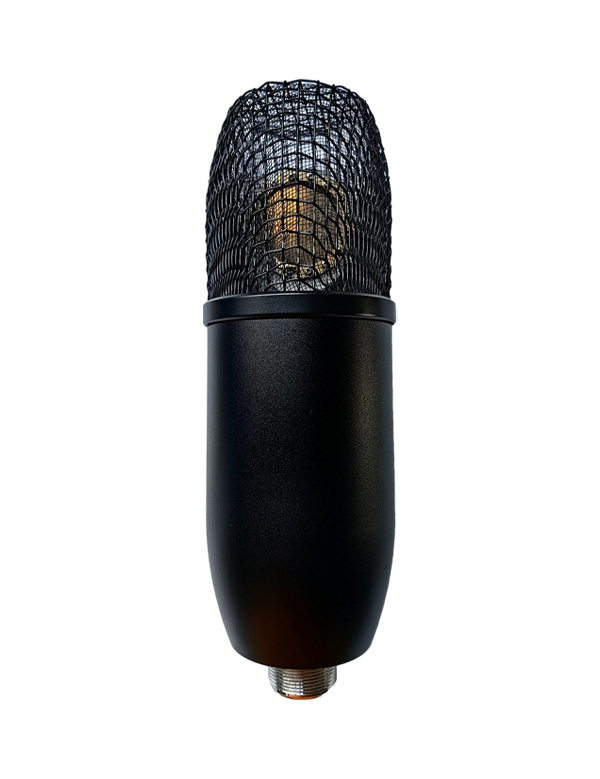

SSY400 condenser microphone

The SSY400 condenser microphone is suitable for recording and live streaming of vocalsandinstruments. It adopts a 34mm goldplated large diaphragm head and has studio level highfidelity sound quality.The head is cardioid directional, effectively reducing noise on both sidesand rear.A specialized Class A amplifier circuit enables the microphone to have low backgroundnoise and low distortion. All metal shell design makes the product more sturdy, durable, andreliable.

Specification:

  • Directionality: Cardioid
  • Frequency response: 20Hz-18kHz
  • Sensitivity: -39dB ± 2dB (0dB=1V/Pa at 1kHz)
  • Output impedance: 200 Ω ± 20%
  • Load impedance: ≥ 1000 Ω
  • Equivalent noise level: ≤ 14dB A (IEC 581-5)
  • Maximum sound pressure level: 128dB (THD ≤ 1.0% at 1kHz)
  • Voltage: 48V phantom power supply
  • Size: φ59×183mm
