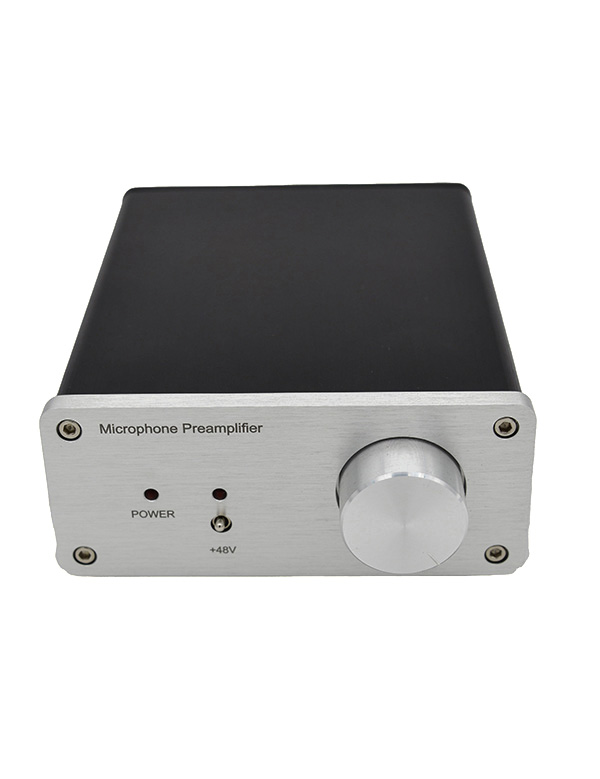

Microphone Preamplifier

Remind:When connecting a condensermicrophone, an external48V poweradapter is required for power supply

Specification:

• Frequency Range:10 Hz - 20,000 Hz (-1 dB)
• Gain:18-45 dB (load >1kOhms)
• Max output level:8.3 dBV(2.6 V)
• Output noise level:8 μV (JIS-A)
• Powering:48 Volts according to IEC 61938
• Electrical impedance:1k Ohms
• Recommended load impedance:>1k Ohms
• Current consumption:5.0 mA when not powered externally

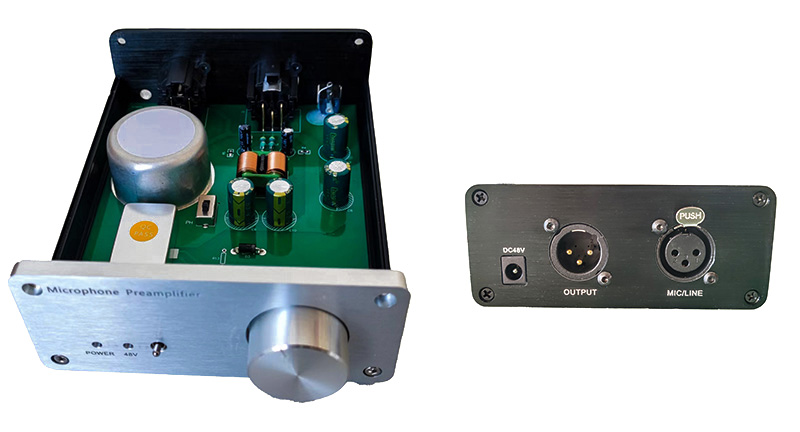

• Connectivity:3-pin male/femaleXLR connector
• Weight:560 grams
• Dimensions:139x116x50mm
