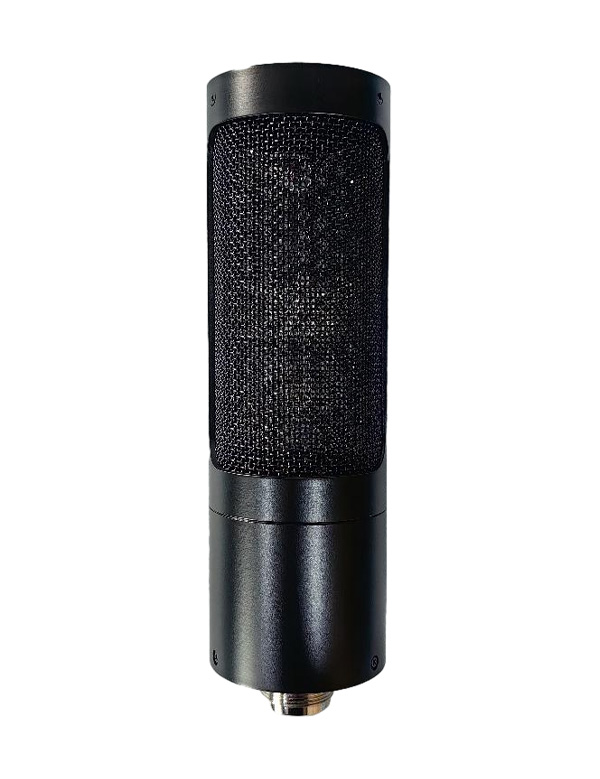

RM52 Ribbon Microphone

Technical Data:

  • Type: Large Ribbon Geometry (LRG) Ribbon Microphone
  • Aluminium Ribbon: 2.5 micron
  • Polar Pattern: Figure 8
  • Sensitivity: -52dB(0dB=1V/Pa)
  • Frequency response: 20 to 18,000Hz
  • Impendance: <=200Ω
  • Recommended load impendance: 1,000Ω
  • Max SPL (1% THD @1000Hz): 137dB
  • Equivalent noise level to IEC 268-4 (A weighted): 17dB
  • Size(Diameter): φ52*172mm
