C12

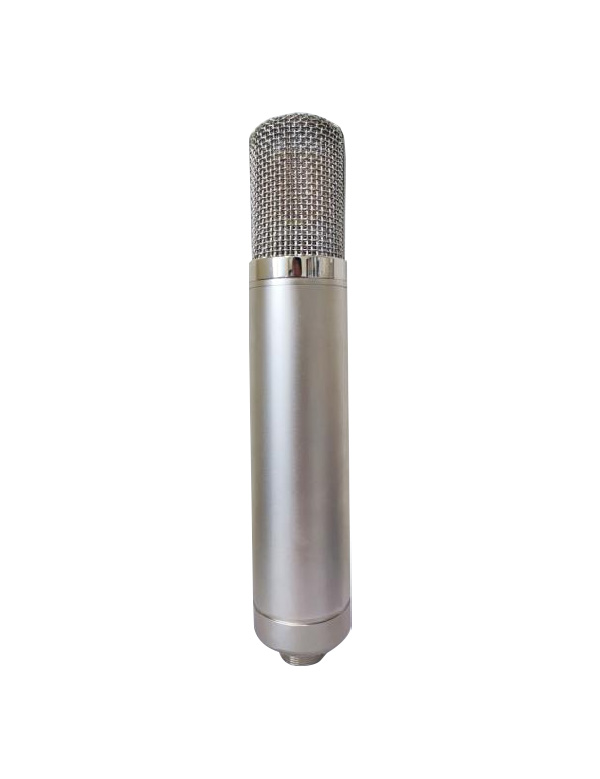

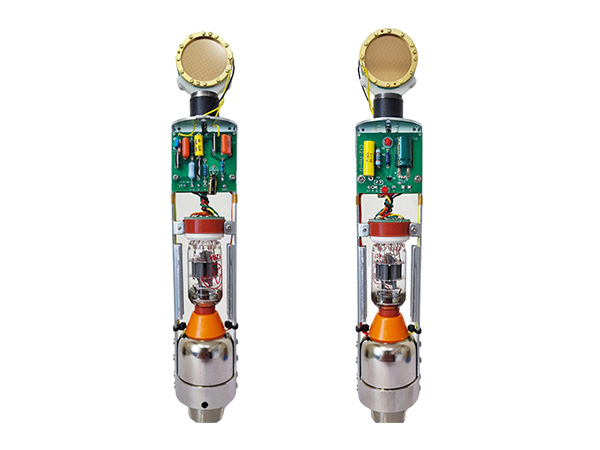

C12 is a tube microphone with a capsule design and tube circuitry based on those of the famous AKG C12. It has been used CK12 capsule and JJ 12AY7 tube and T14 style transformer. It is an outstanding choice for vocals and acoustic instruments, including percussion, drums and grand piano, as well as for distant miking.

• Pattern Selector: 9 patterns from the power supply.
• Capsule: 34mm edged with dual back-plate and dual 6 micron skinned diaphragms
• Capsule Polarization: 60V on the back-plate
• Tube type: JJ 12AY7
• Frequency response: 25Hz-20kHz + or - 3db
• Equivalent Noise Level: <15dB (A- weighted)
• S/N Ratio: >85dB (Ref. 1Pa A-weighted)
• Sensitivity: -32dBu
• Output impedance <200 ohm (load impedance <1.2K)
• Output connector: Male XLR, 7-pin gold plated
